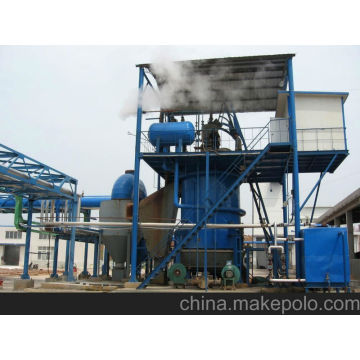

customer praised two stage coal gasifier

Specifications

two stage coal gasifier
1.automatic operation
2.Advanced Gasification Technical
3.Capacity:980-11000Nm3/hr.
4.CE &ISO9001

  customer praised  two stage coal gasifier

Coal gasifiers using coal or coke,carbon material as fuel, air and water vapor are mixing for gasification agent in a gasification process.Using the automatic coal feeding, automatic slagging, the unique pagoda type heat-resisting cast steel grate,which has powerful broken slag, slag loosening, breathable function. No smoke in the burning process,concentration of sulfur dioxide and soot emissions are in line with environmental standard GB9078-1996.Many coal gasifier advantages,such as,Reasonable gas gasification,simple design,lower investment,safe and convenient operation,simple operation and maintenance,which are well received by customers praise,this is my company launched a new area of intelligent and efficient energy-saving environmental protection products.





product features
1.The gasifier equipe the bucket to left coal, double bell jar feeding mechanism, and better the sealing effect, its adjustable pocket flap and conical coal unit can be used combinable, coal distribution uniformity,
2.Basically same thickness in cross-section fuel, so as to improve coal gasification efficiency, put an end to occur the flaming phenomenon of partial furnace.
3.The furnace adopts full water jacket, self-produced steam, not outside for steam, pressure stability, favorable gasification in hearth, good cooling effect in furnace, water jacket inner sleeve deformation.
3.Double bell coal feeder bring better sealing;
4.Wet rotary ash disk system adopt a tower type pyramid pentagonal grate,material is made by the steels casting.Design of small ash knife push slag, which add the mechanism of slag,broken slag structure,which enable uniform distribution and operation of gasifying agent.the material layer in the distribution is relatively stable, in the best gas state, and reduce the carbon content of slag, to solve the traditional gasification furnace in order to prevent coking frequent tie brazing, throw the problem of fire;this structure can make the agency distribution uniformity,current operation uniform slag,furnace is relatively stable the best state of gas,reduce the carbon content of slag, and have solved the traditional gasifier in order to prevent coking frequent fire drill and flaming out.
5.With isolation of water seal dust catcher, during the outage boiler stop, which can improve water closed height, cut off the gas generator and thermoelectrical furnace between gas and make sure have no pressure, put an end to happen the tempering explosion.
6.With refractory concrete roof insulation,cooling water saving.
7.Use the special burner, this gas furnace are based on different specifications, different using conditions, equipped with a special "ejector type" burner, which can bring some usages, such as sufficient fuel combustion, stable operation, long life and other characteristics;



 The principle of the coal-gas gasification

 Continuous gas gasifier adopt coal with 20-80 mm size as ideal fuel, when the coal was fed into furnace by adding coal scuttle, after met the gasification agent (air and water vapor) by bottom drum charging into, which make coal and water vapor reacted, formed the flammable gas such as carbon monoxide and hydrogen, thus which reach a state of complete gasification, steadily make gas continuously. The material layers are formed a five stages from bottom to top: ash layer,oxide layer, reduction layer, retorting layer, dry layer.
Blasted the gasification agent, passing the slag layer firstly, and preheating on this layer, when the gas are rise into the high temperature fuel layer, carbon and oxygen generating the following reaction: 2 C + O = 2 co + Q 2 co + O2 = 2 C02 + Q C + O = C02 + Q
Several reaction is exothermic reaction, temperature is very high, this layer called oxide layer.
The heat generated in the oxide layer continue to rise,with the upper fuel contacting, resulting in a reduction reaction, main restore layer reaction:
C02 + C = 2 CO - Q C + H2O = C02 + 2 H2 - O C + H2O = CO + H2 - Q
Times reduced layer is mainly used to generate carbon monoxide and excess water vapor. CO + H2O = C02 + H2 + Q
Besides,the generation of methane side reaction: C+2H2=C04+Q
The hot gas have rosed in the reduction zone,heating the upper coal steam,form the dry distillation and drying layer.
Dry distillation of volatile organic can be evaporated under the physical thermal effect of the rising heating gas,meanwhile, the water in the dried layer can be dried completely through this same heating.



Serviceable range
Mechanical processing industry: all kinds of heat treatment furnace, including: high manganese steel hardening furnace, annealing furnace, tempering furnace, ageing furnace, mold shell baker, forging furnace, rolling furnace, etc.
Non-ferrous metal industry: aluminum melting furnace, melting copper furnace, metal magnesium smelting furnace, etc.
Building materials industry: building ceramics, sanitary ceramics, etc.
Silicate industry: glass, ceramics for daily use, grinding wheel, refractory material, etc.
Boiler: all kinds of hot water boiler, steam boiler with producer gas as fuel, not directly coal burning, reduce pollution, energy conservation and environmental protection.
Chemical industry: chemical products drying, calcination.
Nonmetallic industry: ore material drying, calcination.
Planting industry: vegetable shed, flowers shed heating.
Food industry: food dehydration and drying.



Structure and configuration
On coal system: on the coal car, winch mechanism, coal rack into the coal sieve, double bell plus coal box.
Gasified furnace system: the water jacket furnace (or half water jacket furnace), the furnace roof, cloth coal fire detection hole, the water loop, the steam loop.
Ash system: grate device, ash tray (or closed) gray structure, drive mechanism.
Blast system: hearth fan, flapper valve.
Instrument: control cabinet, thermal test instrument.
Dust Reduction System: ash bucket, cyclone , wet disc valve , box-type dust collector.
Drum: steam gas gathering and connecting pipe.



specification



Item	unit	Model and specification
		HMCQ-8	HMCQ-10	HMCQ-12	HMCQ-16	HMCQ-20	HMCQ-26	HMCQ-32
Chamber diameter	mm	800	1000	1200	1600	2000	2600	3200
Hearth area	m2	0.5	0.785	1.13	2.01	3.14	5.31	8.04
Fuel layer	mm	1000
Fire layer	mm	100~300
Ash layer	mm	100~300
Applicable coal	Non-caking or weak-caking anthracite, bituminous coal, etc.
Coal size	mm	13-25, 25-50
Coal consumption	Kg/h	40-100	70-140	120-190	350-460	500-720	850-1200	1800-2200
Gas catalyst	Air, steam
Gas output	Nm³/h	140-350	245-490	420-670	1200-1600	1750-2500	3000-4300	6500-7500
Net heating value	KJ/Nm³	5020-5670(related to the coal)
Steam production	Kg/h	60	80	130	220	300	500	550
Gas temperature	℃	300-550
Coal gas pressure	Pa	980-1470					1470-1960
Hot blast pressure	Pa	<3000-4000					<6000
Saturated temperature	℃	50-65
Ash tray speed	R/h	0.177-1.77
Whole power	Kw	<6	<6	<6	<8	<8	<8	<10
Equipment weight	T	3.5	4.5	5	12	19	28	45
Remarks	Besides the above general models, we can also supply special models as your request.
